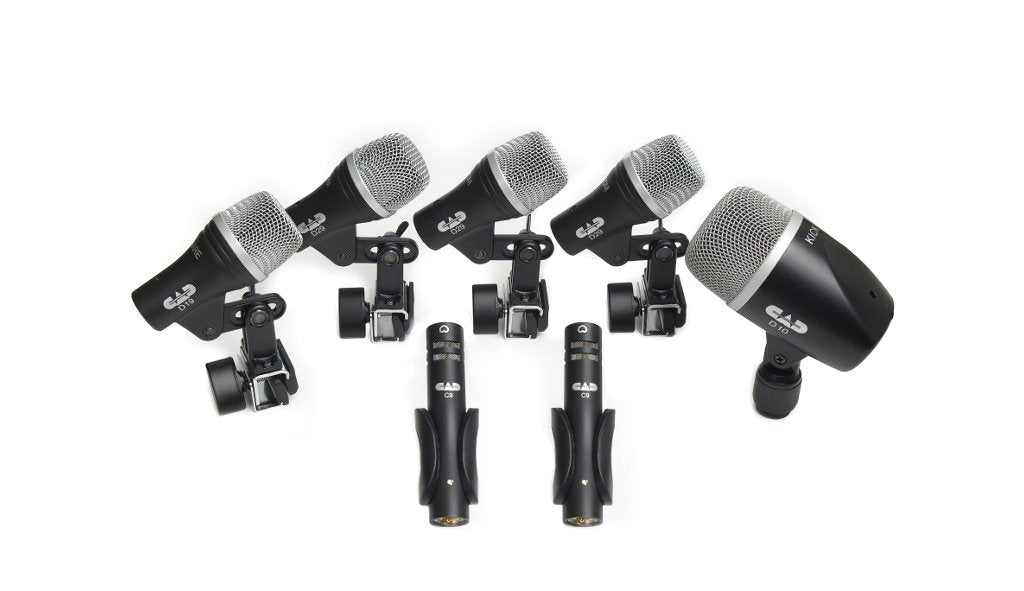

CAD Stage 7 Drum Microphone Pack

The CAD Stage 7 Drum Microphone Pack is an affordable 7-piece drum microphone package well suited for performing, rehearsing and project recording. The Stage 7 consists of the D10 dynamic kick drum microphone, 3x D29 tom microphones, a D19 snare drum mic and 2x C9 overhead microphones. All the microphones include mounting hardware and a vinyl carrying case for transport and storage.

C9 Cardioid Condenser Instrument Microphone

Operating Principle: Condenser
Polar Pattern: Cardioid
Frequency Response: 40Hz -13KHz
Sensitivity: (2.2mV) @ 1 Pa
Impedance: 150 ohms
Max SPL: 140dB
Self Noise: 27dBA
Power Requirements: P12, P24, P48, 2.2mA
Weight: 1.12oz [32g]
RF Immunity: Meets or exceeds EN55103-2, E1-E4
RoHS: Compliant

D29 Cardioid Dynamic Percussion Microphone

Operating Principle: Moving-coil dynamic
Polar Pattern: Cardioid
Frequency Response: 90Hz -13KHz
Sensitivity: -53dBV (2.2mV) @ 1 Pa 90
Impedance: 560 ohms
Weight: 6.5oz [0.19Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4

D19 Supercardioid Dynamic Percussion Microphone

Operating Principle: Moving-coil dynamic
Polar Pattern: Supercardioid
Frequency Response: 90Hz -14KHz, -6dB
Sensitivity: -56dBV (1.6mV) @ 1 Pa 9
Impedance: 300 ohms
Weight: 6.5oz [0.19Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4
RoHS: Compliant

D10 Cardioid Dynamic Kick Drum Microphone

7-piece Drum Microphone Pack
three D29
two C9
one D19
one D10

RoHS: Compliant
